5Pcs INMP441 Omnidirectional Microphone Module MEMS High Precision Low I2S Interface Support ESP32

Product Details

Product details of 5Pcs INMP441 Omnidirectional Microphone Module MEMS High Precision Low I2S Interface Support ESP32
Microphone Module
Product introduction:
The INMP441 is a high performance, low , digital output, omnidirectional MEMS microphone with bottom port. The
The complete INMP441 solution consists of a MEMS sensor, signal conditioning, analog to digital converter, anti-aliasing filter, management and industry standard 24-bit I2S interface. The I2S interface allows the INMP441 to be connected directly to digital processors such as DSPs and microcontrollers without the need for an audio codec for use in the system.
The INMP441 has a high signal-to-noise ratio and is an excellent choice for near field applications. The INMP441 has a flat wideband frequency response that results in high definition of natural sound.
Product Features:
Digital I2S interface with high precision 24-bit data
2. High signal-to-noise ratio is 61 dBA
3. High sensitivity-26 dBFS
4. Stable frequency response from 60Hz to 15kHz
Low consumption: low consumption 1.4 mA
6.High PSR: -75 dBFS
Interface definition:
SCK: Serial data clock for I2S interface
WS: Serial data word selection for I2S interface
L / R: Left / Right channel selection.
When set to low, the microphone outputs a signal on the left channel of the I2S frame.
When set to high level, the microphone outputs signals on the right channel
SD: Serial data output from the I2S interface.
VCC: Input , 1.8 V to 3.3 V.
GND: ground
Connect to ESP32:
INMP441 ESP32
SCK–GPIO14
SD–GPIO32
WS–GPIO15
L / R–GND
GND–GND
VDD–VDD3.3
Colour:Black
Material:ABS

Package Contents:

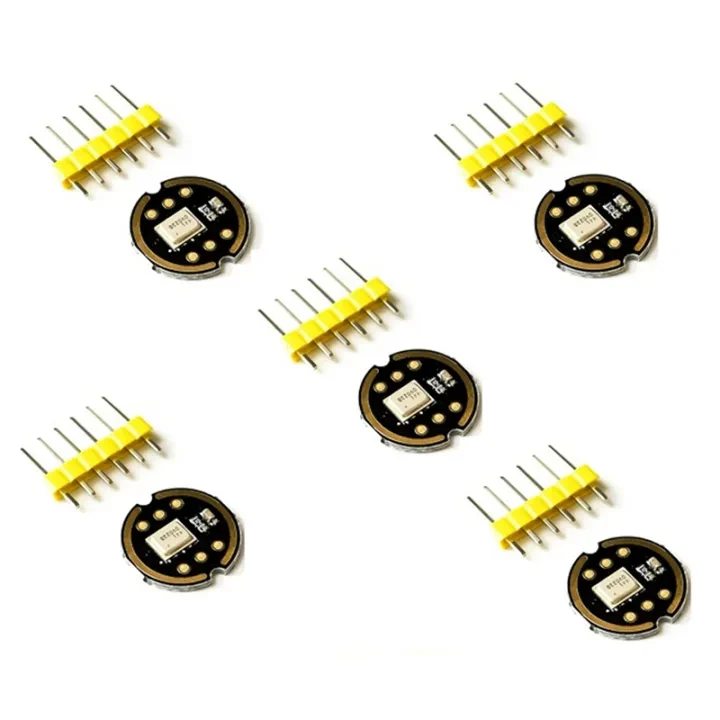

5 * Omnidirectional Microphone Module
Only the above package content, other products are not included.
Note: different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Specifications of 5Pcs INMP441 Omnidirectional Microphone Module MEMS High Precision Low I2S Interface Support ESP32
BrandNo BrandSKU196720091_PK-1391932766ModelMicrophone Module
What’s in the box 5 * Omnidirectional Microphone Module
